Product Details

+
  • 锐杰 5308压轮UV打印机 - 副本 - 副本.jpg

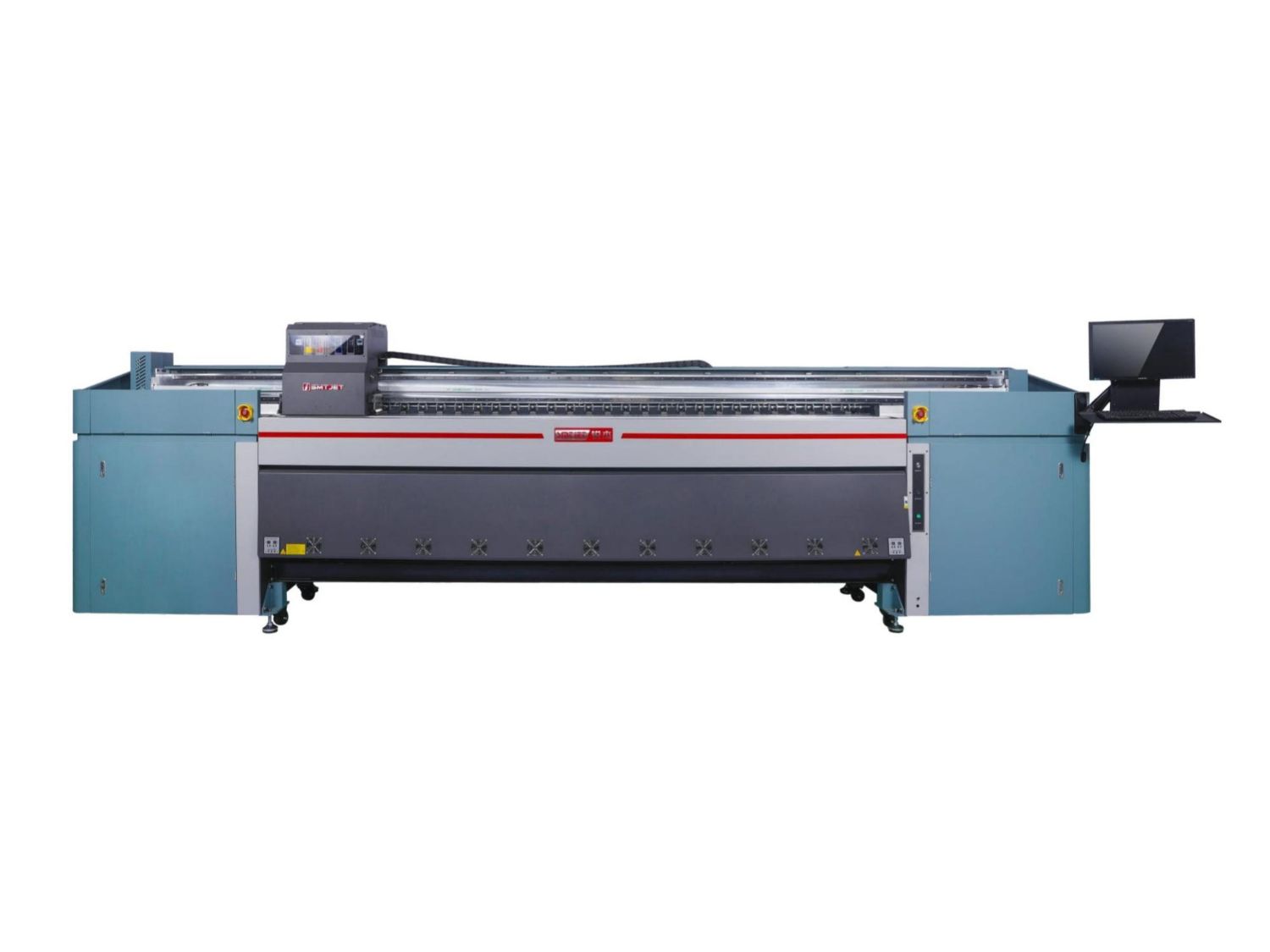

Ruijie 5308 Pressure Roller UV Printer

5.4M extra-wide platform, can print 5.3M images while printing two rolls of material simultaneously, saving labor and space. The chassis is raised, and 5M fabric can be easily pushed from the front to the back.

Keywords: inkjet printer | photo machine | UV machine | ink consumables


Product Details


5.4m ultra-wide platform, can print 5.3m images while printing two rolls of material simultaneously, saving labor and space. The chassis is raised, and 5m fabric can be easily pushed from the front to the back.

Performance characteristics:
Konica 1024i printheads with all nozzles independently driven, ensuring stable ink jetting.
Dual linear silent guide rails and precision-milled all-aluminum alloy crossbeams ensure accuracy.
High-precision platform and pressure roller, reasonable fabric feeding and receiving design, ensuring smooth and efficient fabric feeding.
Heavy-duty UV wall-panel structure design, with an ultra-strong and stable main crossbeam.
Industrial-grade negative pressure for continuous printing without ink interruption.
Front and rear dual electric pressure rollers for easier operation.

Large-capacity circulation ink cartridge

Magnetic levitation linear motor

Negative pressure system

Dual fabric feeding system

Imported large-capacity filter

Segmented suction control

Electrically controlled pressure roller

UV curing lamp

Forged steel beam

BYHX high-performance control system

Ruijie 5308 Pressure roller UV Printer

Model

SJ24S5308

RIP Software

Monte 6.0( Optional Photoprint, Onyx)

Printing width

5.3M

Operating system

System requirements PC System: win7 64bit/win10 64bit
CPU: Intel i5 and above Memory RAM: 4G and above
Hard drive: 120G SSD + 500G HDD
Port Port: USB 2.0, USB 3.0

Droplet size

1024i-30PL

Printing speed

4 PASS 63m 2/h

Power supply

Uninterruptible power supply AC 220V, 50HZ ± 10%,

Temperature / Humidity

Temperature0 -40 Humidity 60%-70%

6 PASS 40m 2/h

Power

3500W

Precision

480*1440 DPI

Material receiving system

Optional independent fabric receiving

Color mode

16.7 million CMYK

Gross/Net weight G.W/N.W

3200KG/2700KG

Image format

TIFF, JPG, EPS, PDF

Packaging size

760*115*185 CM

Note: Due to different computer configurations, the product speed may 10% vary. Specific configurations are subject to the actual product. Technical specifications are subject to change without notice. .
